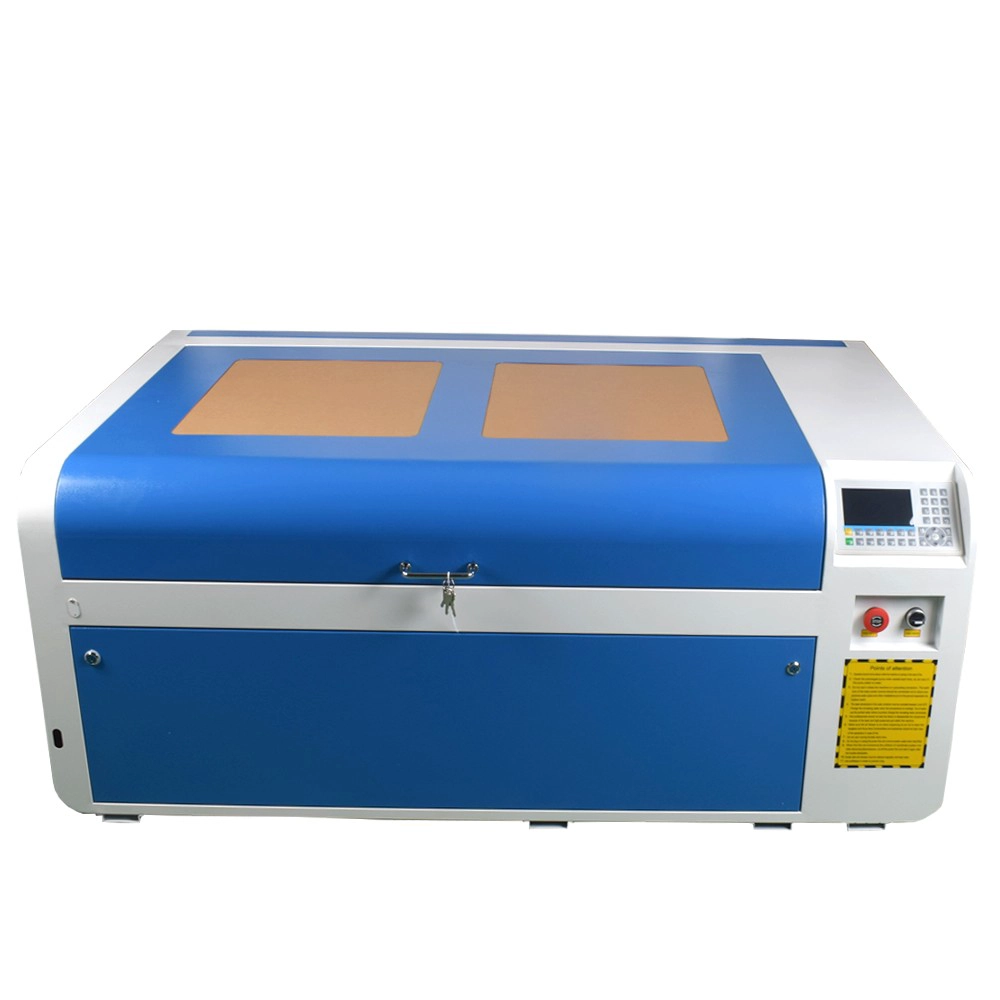

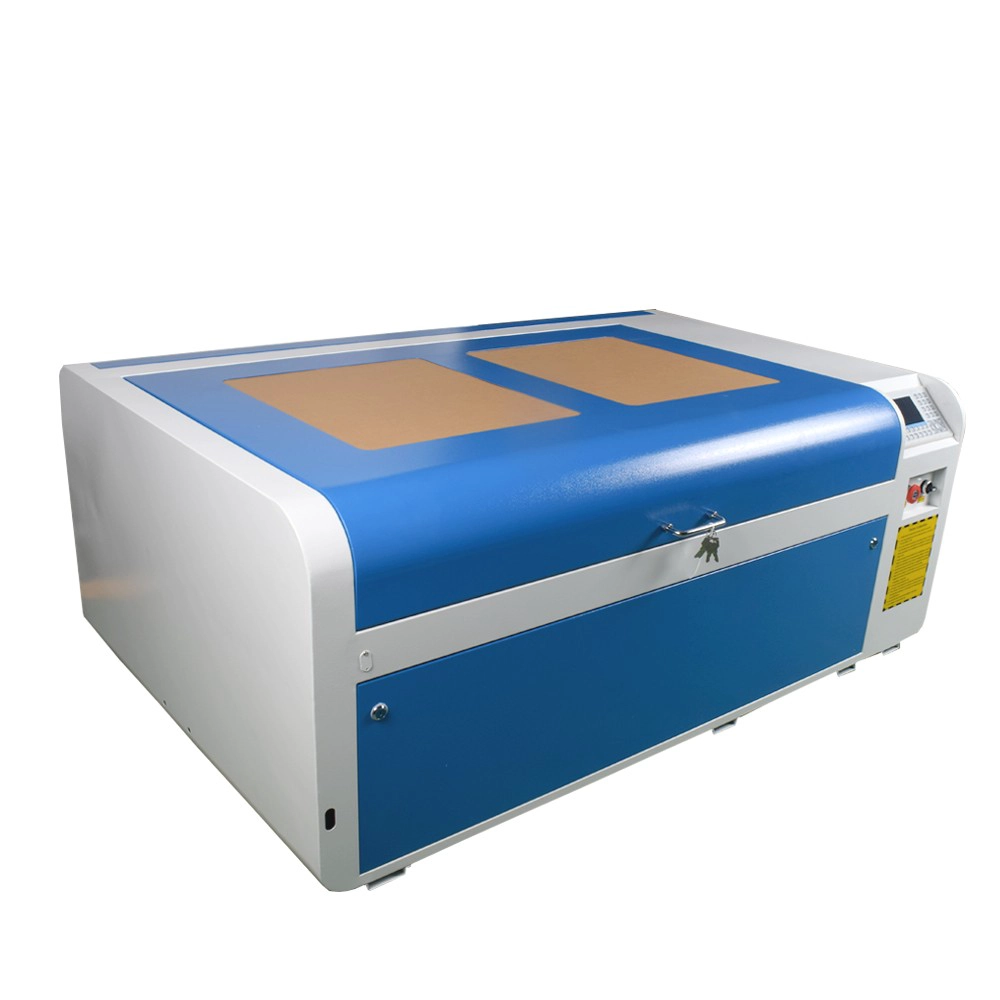

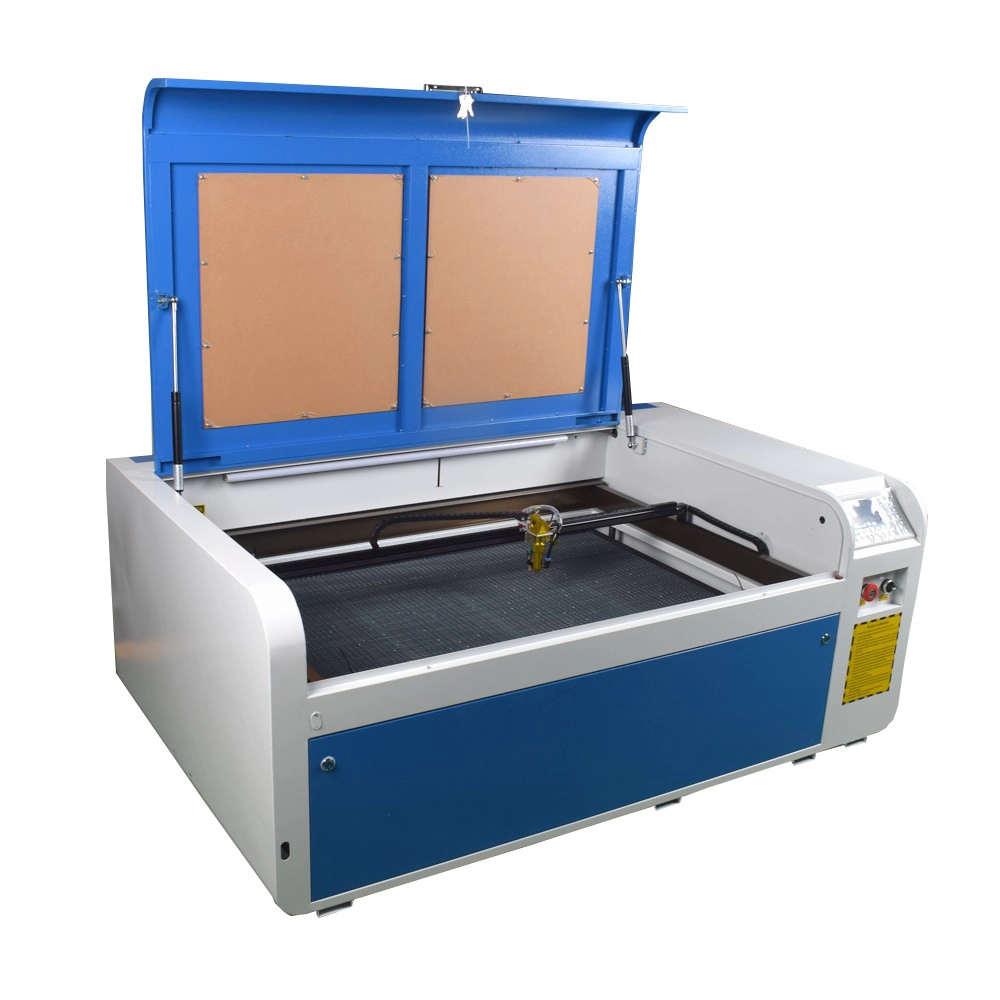

SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine 1000 x 600mm from ChinaCNCzone
- Total power <300W
- Laser power 100W
- Laser type CO2 laser engraving machine
- Power supply AC 220V/110V
- Working area 600*1000 mm
SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine 1000 x 600 mm from ChinaCNCzone
Outstanding features as below
Working ares: 600x1000mm
New DSP controller box no need to connect to computer.
17HW4410H Step motor
Industrial level laser head
Light system: Light system
Colour: bule and white
Adjustable Speed and Power
USB Interface
Air Assist, Remove heat and combustible gases from the cutting surface
Embedded Exhaust Fan, Easier install, Safer transport
Rotary Axis, Engrave any cylindrical object
Cellular platform
Intuitive Control Panel, Set Speed, power and more controls directly from the laser
Water Cooling and Protection System with a chiller.
Laser positing
Emergency Stop Buttom.
Larger Size, 600*1000mm working area.
Lifting platform is electric control, 0-25cm.
Laser focal length: 5CM
A limit switch let it can only work when the cover is closed.
Working ares: 600x1000mm
New DSP controller box no need to connect to computer.
17HW4410H Step motor
Industrial level laser head
Light system: Light system
Colour: bule and white
Adjustable Speed and Power
USB Interface
Air Assist, Remove heat and combustible gases from the cutting surface
Embedded Exhaust Fan, Easier install, Safer transport

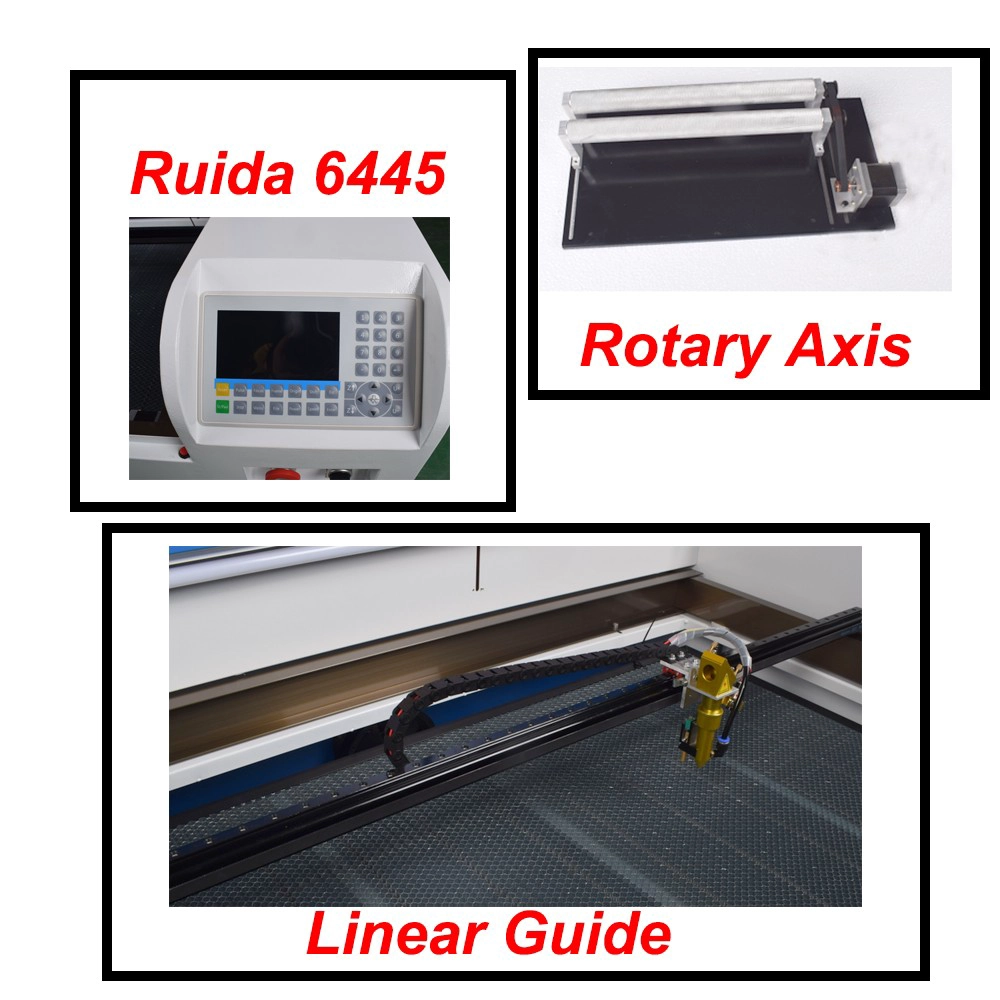

Rotary Axis, Engrave any cylindrical object
Cellular platform
Intuitive Control Panel, Set Speed, power and more controls directly from the laser
Water Cooling and Protection System with a chiller.
Laser positing
Emergency Stop Buttom.
Larger Size, 600*1000mm working area.
Lifting platform is electric control, 0-25cm.
Laser focal length: 5CM
A limit switch let it can only work when the cover is closed.
There are Chinese, English, Russian, Portuguese,Italian languages in the control panel for your selection
Packing list for this SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine
1 x DSP 1060 100W C02 Laser engraving machine
1 x Laser engraving software (down load link)
1 x User Manual (down load link)
1 x CW-3000 INDUSTRIAL CHILLER
1 x Air exhaust fan
1 x Air Pump
1 x Communication cable and USB cable
1 x Rotation axis
1 x Honeycomb work platform
Two packages：
1.Machine Package:Wooden box with foam inside
Package dimension:154*112*77CM
Gross weight:178KG
Package weight:267KG
2.Chiller Package:Carton box with foam inside
Package dimension:57*48*35CM
Gross weight:12KG
Package weight:20KG
This SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine is suitable to: woodworking, textile cutting, industrial prototyping, industrial marking,signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls,cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes,light switch plates, jewelry boxes, parts marking, router templates, desk .
Kind Note:You may interested in below article:
1 x DSP 1060 100W C02 Laser engraving machine
1 x Laser engraving software (down load link)
1 x User Manual (down load link)
1 x CW-3000 INDUSTRIAL CHILLER
1 x Air exhaust fan
1 x Air Pump
1 x Communication cable and USB cable
1 x Rotation axis
1 x Honeycomb work platform
Two packages：
1.Machine Package:Wooden box with foam inside
Package dimension:154*112*77CM
Gross weight:178KG
Package weight:267KG
2.Chiller Package:Carton box with foam inside
Package dimension:57*48*35CM
Gross weight:12KG
Package weight:20KG
| Parameters for this DSP 1060 CO2 Laser Cutter | |
| Total power | <300W |
| Laser power | 100W |
| Laser type | CO2 laser engraving machine |
| Power supply | AC 220V/110V |
| Working area | 600*1000 mm |
| Engraving depth | 0-20 mm (different material differ) |
| Cutting depth | 0-20 mm |
| Engraving speed | 0-800mm/s |
| Cutting speed | 0-800mm/s |
| Lifting platform | 0-250 mm Honeycomb Worktable |
| Locating precision | <0.01 mm |
| Min shaping character | Character: 2*2mm, Letter: 1*1mm |
| Working temperature | 5℃-45℃ |
| Working humidity | 5%-95% |
| Resolution ratio | ≤1000dpi |
| Data transfer interface | USB 2.0 (offline) |
| System environment | Windows XP / Win 7 / Win 8 |
| Cooling | Water Cooling and protection system with chiller |
| Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
| (BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF | |
| Compatible software | CorelDraw,WinsealXP |
| Color separation | NO |
| Sloping engraving | NO |
| Protection | Emergency stop buttom and Stop working when water broken |
| Machine Dimensions | 140*75*58 cm |
| Packing | Wooden box with foam inside |
| Package Dimension | 157*94*78 cm |
| Package Weight | 230 kg (Counted by volumetric weight ) |
Red dot Positioning Function (showing outline or laser dot position)
The CW-3000 INDUSTRIAL CHILLER
Honeycomb (for soft materials engraving and cutting)
Air Pump for this SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine
Rotatory Axis for this SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine
This SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine is suitable to: woodworking, textile cutting, industrial prototyping, industrial marking,signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls,cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes,light switch plates, jewelry boxes, parts marking, router templates, desk .
