ChinaCNCzone HY-3040 CNC 3 Axis Router Engraver Machine With Cross Slide

product dimension 715(H)*700(L)*610(W) mm
effective work area 300*400*150mm
spindle power 1500W/ 2200W water-cooled frequency spindle
input power 220V/ 110V power supply
output current drive 4.5A (peak 5A)
collet size 3/3.175/6mm if need others change into ER11 first
drive motor 57*78 stepper motors (two-phase 4 wire)
engraving material Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
support computer system windowXP/ window 7
how to connect with computer 25 pin parallel port/USB interface for selection
software MACH3 3.04

This HY-3040 CNC 3 Axis Router Engraver Machine With Cross Slide, our latest version of mini CNC router.

Main features for HY-3040 CNC 3 Axis Router Engraver Machine

It can be updated into mini 4 axis and 5 axis CNC router.
Integrated high-speed micro computer intelligent control chip.
With external digital LCD monitor and handwheel controller.
Mach 3 software (Original Mach 3 software can be provided.)
New USB interface can be added (compatible with Mach 3 software)
Built in frequencey converter and without controller box.

Higher precision because:

Cross slippery platform design rather than gantry design.
Aluminum base sheet is heavy which can make sure no vibration when work.
With auto-checking function.
1500w/2200W frequency water-cooled spindle for your selection.
Ball screw.

You can buy this HY-3040 CNC 3 Axis Router Engraver Machine from us without any worry

CE approved.
Video support.
English manual available.
Mach 3 software send with the machine as a CD.
Can engrave material which hardness below 45.
From reliable & trustable profesional China CNC Router manufacturer.

HY-3040 CNC 3 Axis Router Engraver Machine
product dimension	715(H)700(L)610(W) mm
effective work area	300400150mm
precision ballscrew	1605
XYZ rail material	hard chrome shaft
XY rail diameter	20mm
Z rail diameter	16mm
XYZ axis torque	57*78 250 OZ/IN (2.2N/CM)
repeat positioning accuracy	0.01mm
working precision	0.02mm
processing speed	0-4000 mm/min
XY table maximum load	50kg
tailgate material	stainless steel
switching power supply	integrated 24V 350W
spindle power	1500W/ 2200W water-cooled frequency spindle
input power	220V/ 110V power supply
output current	drive 4.5A (peak 5A)
collet size	3/3.175/6mm if need others change into ER11 first
high efficiency water pump	55W, 46.6L /Min
drive motor	57*78 stepper motors (two-phase 4 wire)
engraving material	Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
engraving material	(hardness less then 45 degree)
support computer system	windowXP/ window 7
how to connect with computer	25 pin parallel port/USB interface for selection
software	MACH3 3.04
net weight	50kg
packing	wooden box
outside packing	786682 (cm)
weight	96kg

HY-3040 CNC 3 Axis Router Engraver Machine Accessories

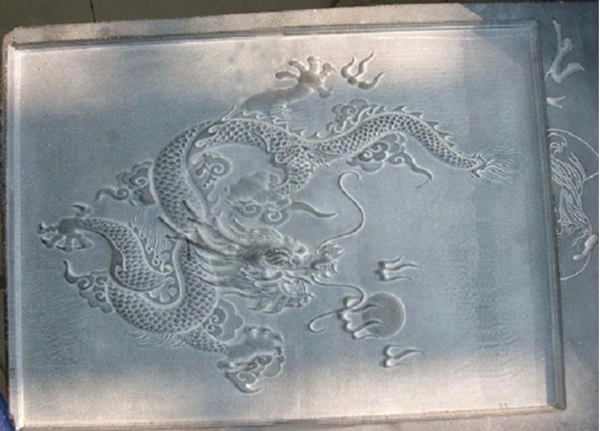

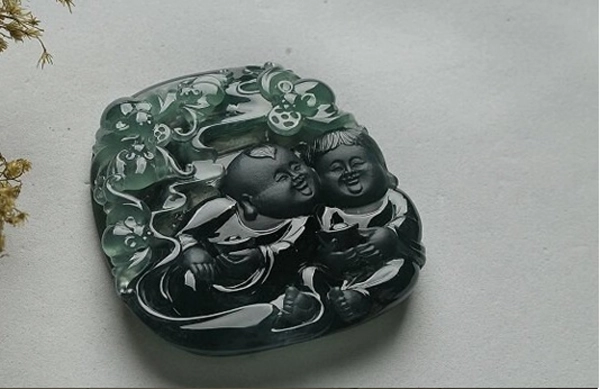

This Desktop HY-3040 Gantry CNC 3 Axis Router can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.
