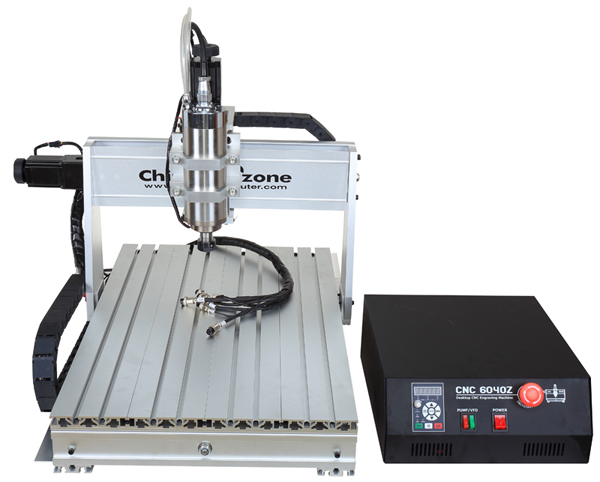

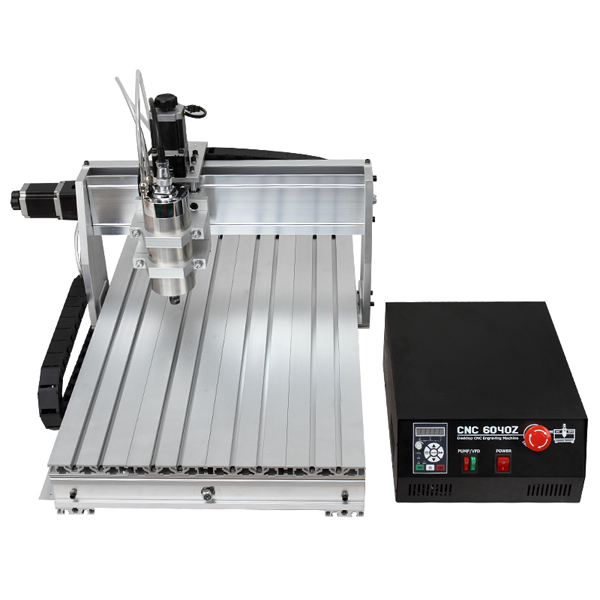

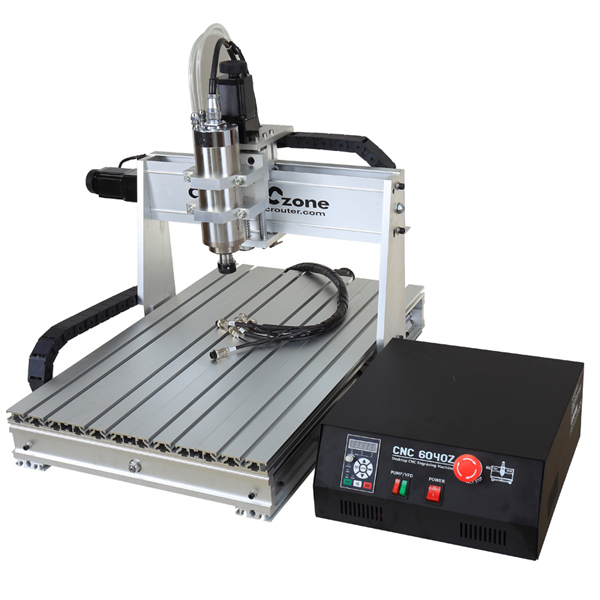

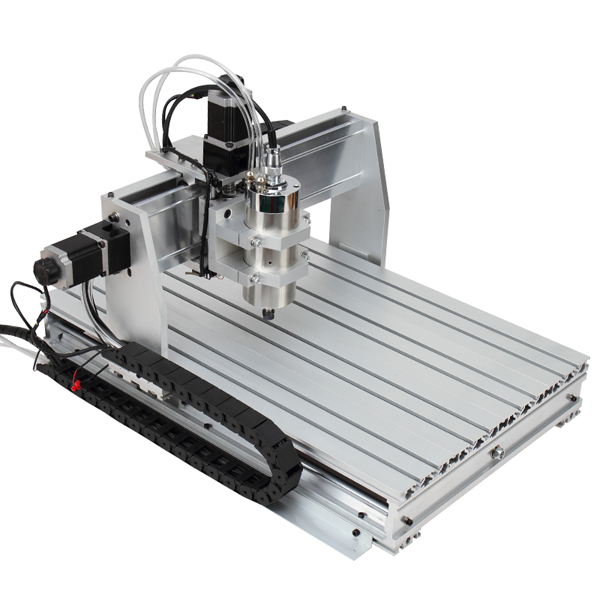

ChinaCNCzone Hot Sale 6040 CNC Router 3 Axis
- Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
- Shape dimension 880*670*640mm
- Max.workpiece dimension 750mm*450mm<150mm
- Work table dimension 750mm*480mm
- acceptable material thickness ≤150mm
- Carving Instructions G code/TAB files/nc file/NCC files/DXF file/GERBER file
- Communication interface through parallel and USB connection with computer
- Software environment Windows xp/Win7/Win8/Win10
Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
Shape dimension 880*670*640mm
Max.workpiece dimension 750mm*450mm<150mm
Work table dimension 750mm*480mm
acceptable material thickness ≤150mm

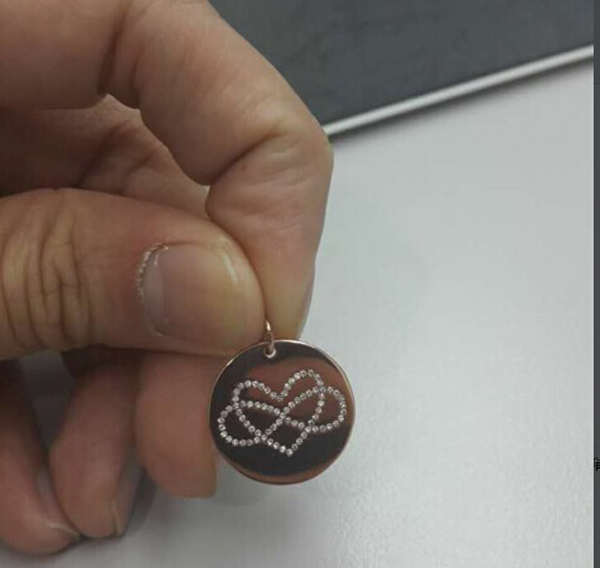

This ChinaCNCzone Hot Sale 6040 CNC Router 3 Axis

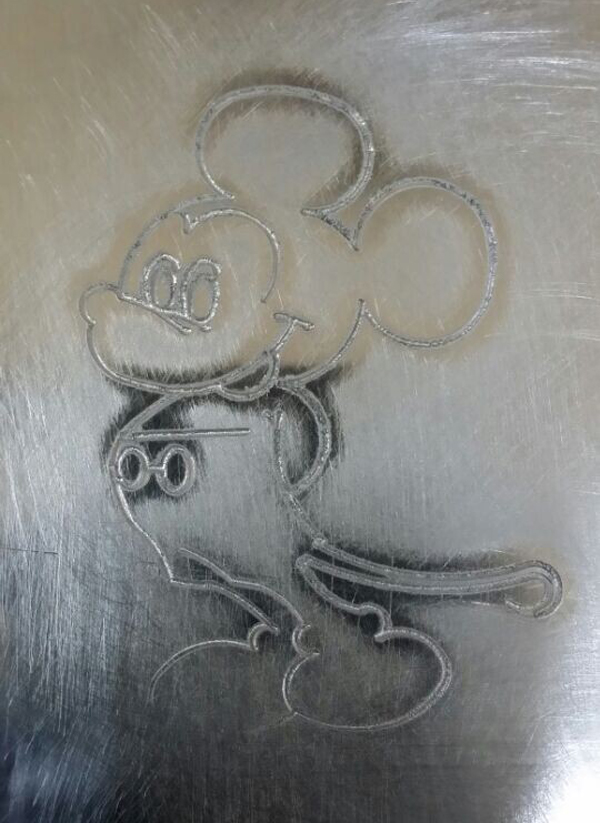

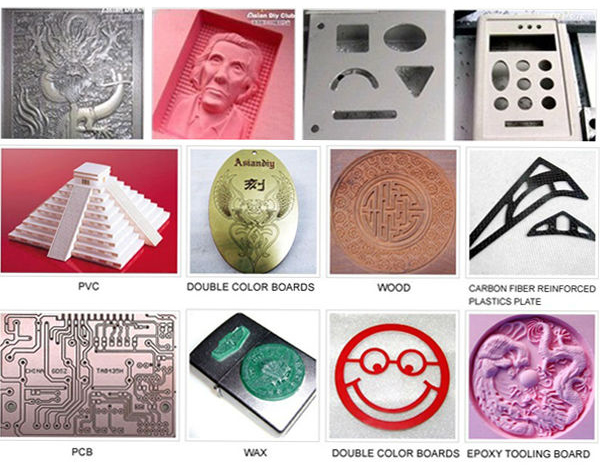

A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts
Shape dimension 880*670*640mm
Max.workpiece dimension 750mm*450mm<150mm
Work table dimension 750mm*480mm
acceptable material thickness ≤150mm
Outstanding features as below
1. 1500w / 2200w Water Cooled Spindle for selection
2. Can be updated into 4 axis CNC Router 6040 easily.
3. Technical support always available with live video support.
4. Ball screw high precision.
5. Independent power supply for mainboard, prolong using life.
6. Software: compatible with Mach 3 or USB CNC software.
7. Limited switch added.
8. Auto-Checking function, easy to set origin of Z axis.
9. Can be connected with computer by parallel port and notebook by USB interface
10.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
11. Spindle diameter: 80mm
12. Can ship from our overseas warehouse.
13. From professional china mini CNC manufacturer.
P.S: Original Mach3 soft available
2. Can be updated into 4 axis CNC Router 6040 easily.
3. Technical support always available with live video support.
4. Ball screw high precision.
5. Independent power supply for mainboard, prolong using life.
6. Software: compatible with Mach 3 or USB CNC software.
7. Limited switch added.
8. Auto-Checking function, easy to set origin of Z axis.
9. Can be connected with computer by parallel port and notebook by USB interface
10.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
11. Spindle diameter: 80mm
12. Can ship from our overseas warehouse.
13. From professional china mini CNC manufacturer.
P.S: Original Mach3 soft available
Note: You may also intrested in below, Just click below link::
| 6040 CNC Router 3 Axis |
||
| Effective working travel | 580(X)mm*400(Y)mm*105(Z)mm | |
| Shape dimension | 880*670*640mm | |
| Max.workpiece dimension | 750mm*450mm<150mm | |
| Work table dimension | 750mm*480mm | |
| Frame materials | aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs | |
| acceptable material thickness | ≤150mm | |
| Driving units | X axis | 1605 ballscrew |
| Y axis | 1605 ballscrew | |
| Z axis | 1605 ballscrew | |
| Sliding units | X axis | Dia.16mm chrome plate shafts |
| Y axis | Dia.20mm chrome plate shafts | |
| Z axis | Dia.13mm chrome plate shafts | |
| Stepping motor type | 57 two-phase 3A 150N.cm | |

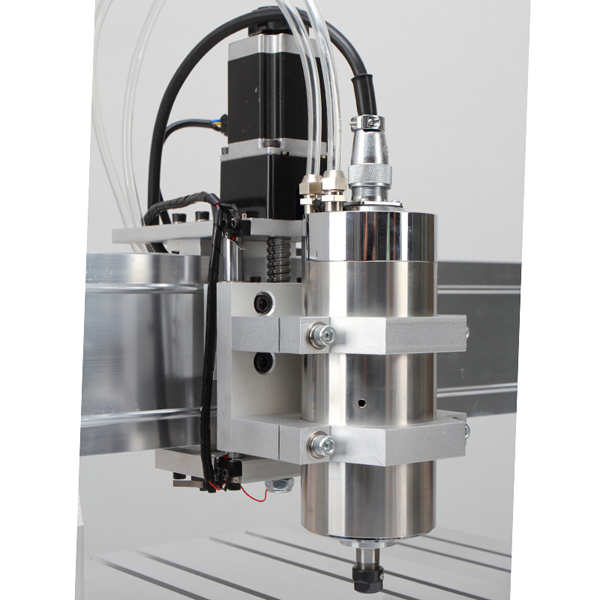

| Spindle motor | brand new 1.5KW water cooling spindle, 24000RPM | |
| Principal axis collet | ER11/3.175 mm/6mm | |
| Repeat accuracy | 0.05mm | |
| Spindle precision | radial beat acuities 0.03 mm | |
| Carving Instructions | G code/TAB files/nc file/NCC files/DXF file/GERBER file | |
| Communication interface | through parallel and USB connection with computer | |
| Software environment | Windows xp/Win7/Win8/Win10 | |
| Maximum speed | 0-4000mm/min | |
| Carving speed | 0-2500mm/min (different materials differ) | |

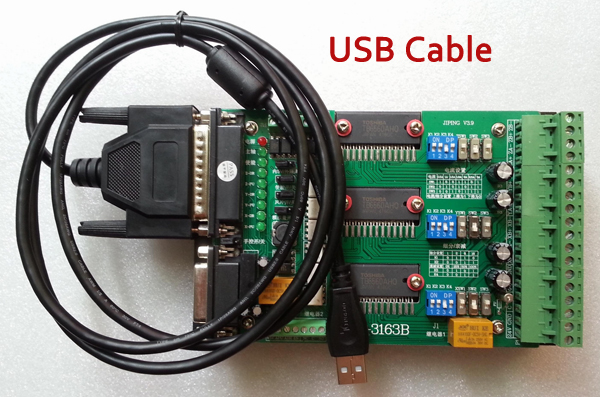

| Control unit | Toroidal transformer + PWM power supply module + TB6560 3axis drive board | |
| Computer connection | parallel port/USB port | |
| Command code | G code | |
| Acceptable software | Mach3,USBCNC | |
| Protection | Emergency stop button | |
| Operating Voltage | AC110V/AC220V | |
| Machine weight (Package weight) | 3 axis 57kg 4 axis 60KG | |
| package dimension | top：62*49*52cm Bot:80*22*63cm | |
This ChinaCNCzone Hot Sale 6040 CNC Router 3 Axis
A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts
